Product description
“Jasmin 5” is a model that attracts attention with its simple but striking form. Made in PREMIUM or ST CPL laminates, this door is characterized by a delicate black panel edge with a thickness of 3 mm, which gives it a subtle elegance. The use of tempered glass allows for optimal illumination of the rooms, while ensuring privacy. The Bella Slim handle in matte black finish blends perfectly with the rest of the door, creating a harmonious whole that will fit into any modern interior.
Product informations
NOTE

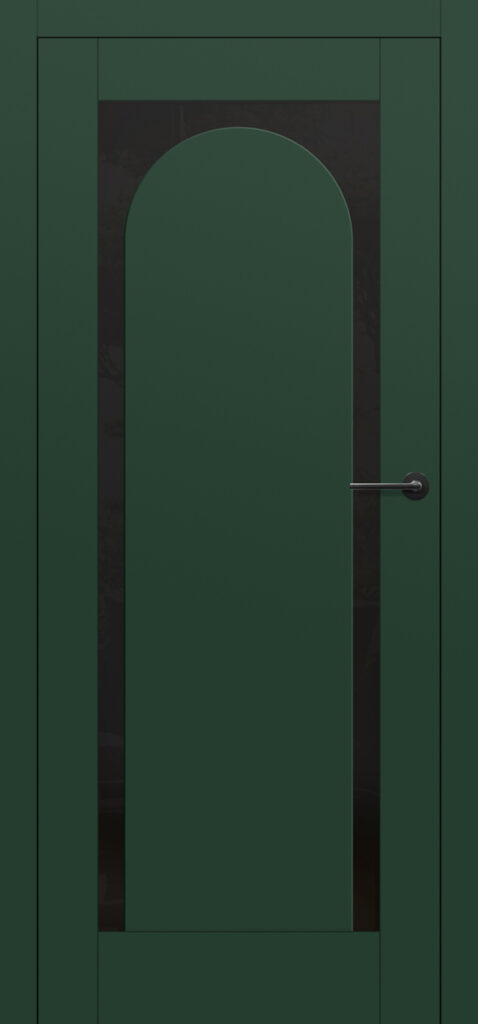

The picture shown is for the door in the wing width of 80. In other widths there are definite differences in the proportions of the glass in relation to the other elements, which may weigh on the choice of the product
CONSTRUCTION
- rebated or non rebated sash made in frame technology
- vertical and horizontal frames made of MDF covered with PREMIUM, ST CPL laminates or ST CPL with AntiFinger coating
- vertical glulam stiles covered with HDF and MDF boards
- 3 mm thick HDF panels glued on both sides of the glass; the edge of the panel is always made in black.
- translucency width between the beveled strip and the glued panel 40 mm
- optional top panels that widen the frame, as well as the crown and pilasters, at an extra charge
FITTINGS
- three silver 2-pin hinges with horizontal adjustment in the rebate sash
- three hidden hinges in the non-hinge sash in silver (optional black for an extra charge) hinges are supplied and priced with the frame
- latch-and-slide lock in the rebated sash and magnetic lock (optional latch-and-slide lock) in the non-rebated sash for key, patent insert, savings lock or silver lock; optional magnetic lock in black or gold for an extra charge
GLAZING
- standard tempered milky or transparent 4 mm glass and for an extra charge VSG 221 bonded glass milky or black safety glass, smooth on both sides
- possibility to change the glazing side to REWERS (AWERS standard glazing)
AVAILABLE WIDTHS
 |
 |
 |
 |
 |
| 60 | 70 | 80 | 90 | 100 |
- 60 - 644 mm
- 70 - 744 mm
- 80 - 844 mm
- 90 - 944 mm
- 100 - 1044 mm
DIMENSIONS
Door height: 2030 mm
Available widths:
Door thickness: 40 mm
Accessories and options
No accessories for this product
